Hardware

Venue-ready cameras, edge compute, connectivity, and deployment accessories.

The CCG hardware stack is built around ultra-high-definition sports capture, local AI processing, stable streaming, and practical field installation for North American sports venues.

Sports Cameras

Product models from the CCG catalog.

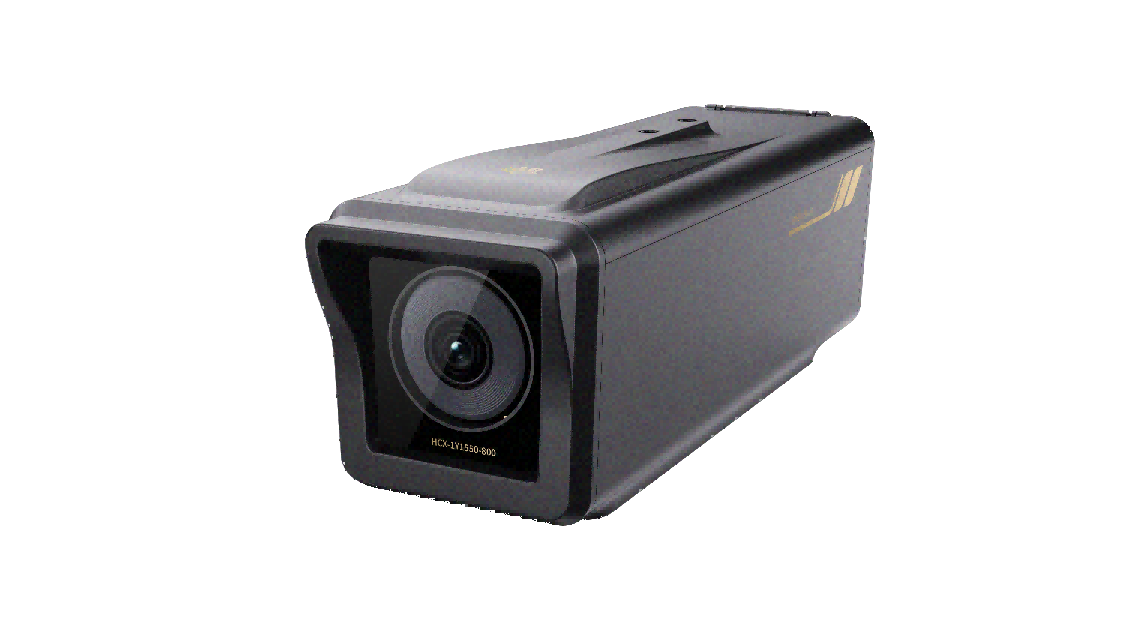

HCX-1Y1550-800 ultra-HD sports live camera
HCX-1Y1550-800

Ultra-HD Sports Live Camera

  • Single-lens IMX585 1/1.2-inch sensor
  • 3840 x 2160 at 60/50 fps
  • 15-50 mm variable focal length
  • RTMP, RTSP, TCP/IP streaming

Designed for sideline deployment with H.264/H.265 encoding, gigabit Ethernet, HDMI output, aluminum body, IP67 protection, and wide operating temperature support.

HCX-2Y0690-1600N5 panoramic sports camera
HCX-2Y0690-1600N5

8K Panoramic Sports Live Camera

  • Dual Sony 1/1.2-inch sensors
  • 7680 x 2160 at up to 60 fps
  • 180-degree horizontal field of view
  • In-camera panoramic stitching

Built for wide-angle field coverage and direct camera-to-server streaming. Supports AI broadcast control, software customization, and SDK integration.

HCX-2Y1170-1600N5 long-range panoramic sports camera
HCX-2Y1170-1600N5

8K Long-Range Panoramic Camera

  • Dual Sony 1/1.2-inch sensors
  • 7680 x 2160 at up to 60 fps
  • 108-degree horizontal field of view
  • Designed for longer-distance capture

A panoramic option for venues that need high-resolution capture from a more distant mounting position, including stadium, arena, and large training-field layouts.

HCX-4Y0450-3200N5 multi-lens panoramic camera
HCX-4Y0450-3200N5

Multi-Lens 8K Panoramic Camera

  • Four 1/1.8-inch sensors
  • 7680 x 3840 output
  • 30/25 fps operation
  • For soccer, basketball, ice hockey, football, volleyball, tennis, badminton, softball, baseball, and multi-sport venues

A broader capture configuration for large fields and full-venue coverage where panoramic detail and operational stability are both required.

AI Compute

Servers and split-body live production devices.

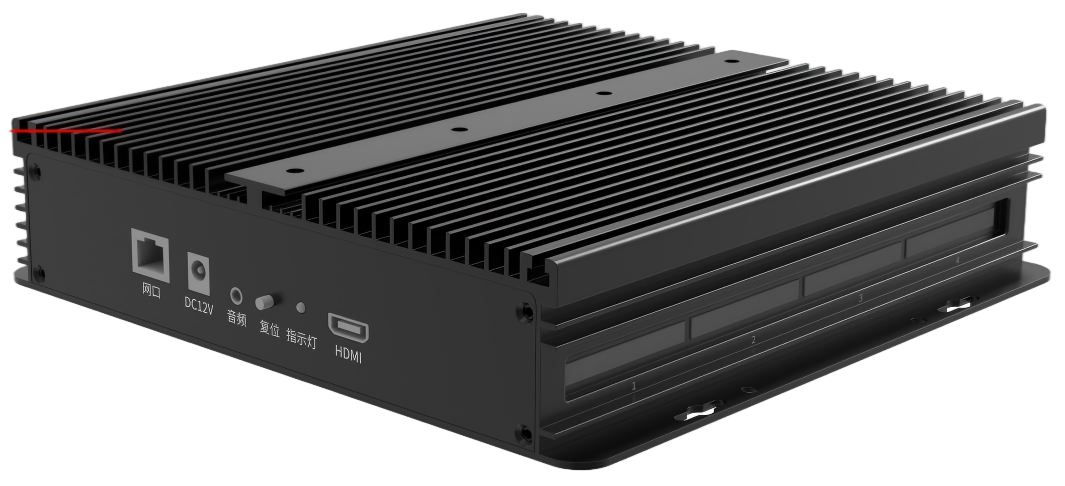

HCX-FusionCube-P1 live production processor

HCX-FusionCube-P1

Split-body ultra-HD production processor for multi-sensor stitching and AI-assisted live workflows.

HCX-AIVision sports broadcast server

HCX-AIVision Server

Local AI vision and live broadcast compute for camera management, recording, tracking, and production.

CCG hardware system lineup diagram

System Stack

Camera, compute, networking, and accessories are deployed as a complete venue package.

Model Role Core Configuration
HCX-FusionCube-P1 Split-body ultra-HD live production processor 3-channel 4K input stitching up to 8192 x 2160 at 40 fps, 4-channel output up to 7680 x 2160 at 30 fps, built-in 4 TOPS AI compute.
HCX-FusionCam-P1 / P2 Split-body camera modules Dual-sensor 4K camera modules designed to pair with the FusionCube processing unit.
HCX-AIVision-Z800 Sports live broadcast server Intel Core i5, NVIDIA RTX 3060, 16 GB DDR5 memory, 1 TB NVMe SSD, local deployment.
HCX-AIVision-Z900 Higher-performance sports broadcast server Intel Core i7, NVIDIA RTX 5060 Ti class GPU, 16 GB DDR5 memory, 1 TB NVMe SSD, local deployment.

Connectivity

5G and redundant network support for real venues.

HCX-HyperLink-P1 5G terminal

HCX-HyperLink-P1

Embedded 5G terminal for mobile event connectivity and backup uplink planning.

Network Redundancy

Dual SIM slots plus WAN fallback support triple-network backup and automatic failover.

Field Uplink

Designed for upload bandwidth of at least 100 Mbps where 5G signal and carrier conditions support it.

Deployment Accessories

Everything needed to install, move, and operate the system.

Monitoring Workstations

Recommended configurations include 12th-generation Intel i7 class processors, 32 GB memory, and RTX 4060 class graphics.

Broadcast Workstations

Operator stations for local production, venue control rooms, and event-day monitoring.

Switching & Power

PoE switches, field cabling, camera power, and deployment-specific network accessories.

Mounting & Transport

Tripods, fixed mounts, quick-release plates, pan-tilt mounts, and flight cases selected for each venue.

Hardware Planning

Match the hardware package to your sport, venue, and production model.

CCG can recommend camera placement, server sizing, networking, and deployment accessories for a pilot site.

Request system design
